ARCL-44-D
Copy of Dale Carnegie_ARCL-44_V4.jpg

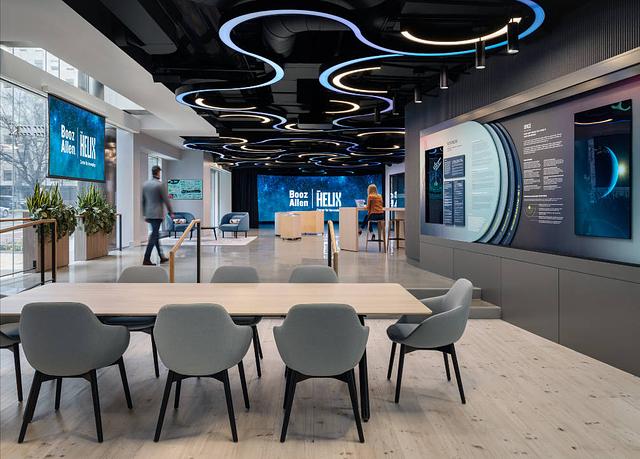

Booz Allen_ARCL-44_V1.jpgARCL-44-D
Arc 44 Direct
The ARCL-44 series is the ultimate solution for curved linear applications, offering full customization with radii starting from 10”. Designed for suspension mounting via aircraft cables or rigid pendant stem, ARCL-44 allows designers to match architectural curves precisely or create dynamic custom patterns to fit any space.
This highly adaptable series integrates seamlessly with Smart Lighting technologies, including daylight harvesting, occupancy sensing, and wireless controls. ARCL-44 is ideal for commercial interiors such as healthcare, educational, office, and municipal spaces. Additionally, it can be specified with variable-width apertures to create truly unique lighting installations.
Resources
CONSTRUCTION: Extruded aluminum housing. 20 gauge cold rolled steel internal components.
REFLECTOR: Die-formed steel finished in highly reflective baked white enamel with pre-finished reflective LED tray.
OPTICS: LED optimized diffuse polycarbonate lens is standard, with clear acrylic dust covers indirect.
LED: Static white LED modules in 27/30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW, Advanced Color, Tunable White and Dim-to-Warm options available; field replaceable.
DRIVER: Driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. DMX, DALI & Lutron protocols available. All drivers prewired for connection to control system (by others), field replaceable.
MOUNTING: Standard options include adjustable self-locking aircraft cables, and rigid pendant stems. AC assembly is 48" x 1/16" with a 5" feed canopy and 2" suspension canopies. 18 gauge power and 22 gauge dimming control SJT feed. May also be surface ceiling mounted.
FINISH: Housing and components finished in baked white enamel. Canopies and pendant stems are white enamel unless otherwise specified.
CERTIFICATION: Luminaires are cETLus listed conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America. I.B.E.W., BAA compliant, Declare Red List Approved.
Mounting
- Surface
- Suspended
Distribution
- Direct
Ratings & Compliance
- Buy American Act (BAA)
- Declare
- Made in America
- Red List Approved
Lumens
- 600 Lm
- 800 Lm
- 950 Lm
Emergency Options
- EM Circuit
- GTD
- Integral EM Battery
Controls Options
- Daylight Sensor
- Occupancy Sensor
- Wireless Control
Dimming Protocol
- DALI
- DMX
- Lutron
Dimming Range
- 1%
- 5%
- < 1%
Dynamic LED Color
- BIOS Dynamic
- RGBW
- RGBWW
- Tunable White
Wiring Options
- DMX Harness
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
- 6500K
CRI
- 80 CRI
- 90 CRI
Color / Finish
- Anti-Microbial White
- Custom
- White
Efficacy
- 106 lm/w
- 108 lm/w
- 114 lm/w
Integrated Brands
- Acuity nLight
- Avi-on
- BubblyNet
- Casambi
- Cooper Wavelinx
- Current NX
- Encelium
- Enlightened
- Legrand
- Lutron Athena
- Lutron Vive
- Philips EasySense
Lamp Source
- LED
Listings
- CSA
- UL
- cETLus
Materials
- Aluminum
- Polycarbonate
- Steel
Static LED Color
- BIOS Static
- White
Voltage
- 120 V
- 277 V
- 347 V
Watts
- 3 w
- 4 w
- 5 w
- 7 w
- 9 w
- 10 w
- 12 w
