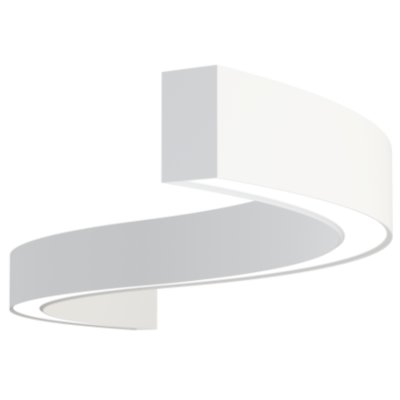

ARCL-24S-D

Arc 24 "S" Direct

The ARCL-24S series is the ultimate solution for curved linear applications. Designed for suspended, surface, or recessed installations in plaster and drywall ceilings, ARCL-24S allows designers to match architectural curves precisely or create dynamic custom patterns to fit any space.

This highly adaptable series integrates seamlessly with Smart Lighting technologies, including daylight harvesting, occupancy sensing, and wireless controls. ARCL-24S is ideal for commercial interiors such as healthcare, educational, office, and municipal spaces. Additionally, it can be specified with variable-width apertures to create truly unique lighting installations.
Specification Sheet

Resources

Specsheets


Share Links
Download
CONSTRUCTION: Extruded aluminum housing. 20 gauge cold rolled steel internal components.

REFLECTOR: Die-formed steel finished in highly reflective baked white enamel with pre-finished reflective LED tray.

OPTICS: LED optimized diffuse polycarbonate lens is standard, w/clear acrylic dust covers indirect.

LED: Static white LED modules in 27/30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW, Advanced Color, Tunable White and Dim-to-Warm options available; field replaceable.

DRIVER: Standard driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. DMX, DALI & Lutron protocols available. All drivers prewired for connection to control system (by others), field replaceable.

MOUNTING: Standard options include adjustable self-locking aircraft cables (AC), and rigid pendant stems (PD).  AC assembly is 48" x 1/16" with a 5" feed canopy and 2" suspension canopies. 18 gauge power and 22 gauge dimming control SJT feed. May also be surface mounted or installed in drywall ceilings.

FINISH: Housing and components finished in baked white enamel. Canopies and pendant stems are white enamel unless otherwise specified.

CERTIFICATION: Luminaires are cETLus listed conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America. I.B.E.W., BAA compliant, Declare Red List Approved.

Mounting

  • Surface
  • Suspended

Distribution

  • Direct

Ratings & Compliance

  • Buy American Act (BAA)
  • Declare
  • Made in America
  • Red List Approved

Lumens

  • 392 Lm
  • 447 Lm
  • 468 Lm
  • 523 Lm
  • 595 Lm
  • 622 Lm
  • 654 Lm
  • 744 Lm
  • 780 Lm

Emergency Options

  • EM Circuit
  • GTD
  • Integral EM Battery

Controls Options

  • Daylight Sensor
  • Occupancy Sensor
  • Wireless Control

Dimming Protocol

  • DALI
  • DMX
  • Lutron

Dimming Range

  • 1%
  • 5%
  • < 1%

Dynamic LED Color

  • BIOS Dynamic
  • RGBW
  • RGBWW
  • Tunable White

Wiring Options

  • DMX Harness

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6500K

CRI

  • 80 CRI
  • 90 CRI

Color / Finish

  • Anti-Microbial White
  • Custom
  • White

Efficacy

  • 78 lm/w
  • 80 lm/w
  • 82 lm/w
  • 89 lm/w
  • 92 lm/w
  • 93 lm/w
  • 94 lm/w
  • 96 lm/w
  • 98 lm/w

Integrated Brands

  • Acuity nLight
  • Avi-on
  • BubblyNet
  • Casambi
  • Cooper Wavelinx
  • Current NX
  • Encelium
  • Enlightened
  • Legrand
  • Lutron Athena
  • Lutron Vive
  • Philips EasySense

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cETLus

Materials

  • Aluminum
  • Polycarbonate
  • Steel

Static LED Color

  • BIOS Static
  • White

Voltage

  • 120 V
  • 277 V
  • 347 V

Watts

  • 2 w
  • 3 w
  • 4 w
  • 5 w
  • 7 w
  • 8 w
  • 10 w
  • 12 w
