COML-44-D-F/TRL

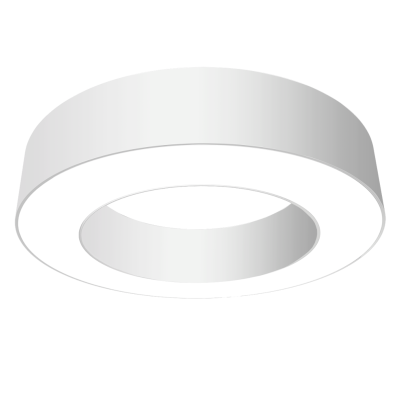

Compass 44 Direct - Flanged or Trimless

COML-44 is the ideal solution for architectural rings in diameters from 2’ to 20’+.  Available in recessed, suspended, and surface mount configurations. COML-24 is constructed from durable, extruded aluminum and in direct or direct/indirect distributions dependent on mounting type. Suitable for use as an alternative to linear lighting in commercial spaces or to create dramatic large scale installations in lobbies, libraries, entertainment or civic spaces.

Compatible with a range of advanced Smart Lighting technologies, including daylight harvesting, occupancy sensing, and integrated wireless controls. Custom finishes to match any corporate or interior color scheme are available. COML-44-D-F/TRL installs in drywall ceilings in either a flanged or trimless configuration.
Specification Sheet

Resources

CONSTRUCTION: Extruded aluminum housing. 20 gauge cold rolled steel internal components.

REFLECTOR: Die-formed steel finished in highly reflective baked white enamel with pre-finished reflective LED tray.

OPTICS: LED optimized Diffuse Polycarbonate lens is standard.

LED: Static white LED modules in 27/30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW, Advanced Color, Tunable White and Dim-to-Warm options available; field replaceable.

DRIVER: Standard driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. DMX, DALI & Lutron protocols available. All drivers prewired for connection to control system (by others), field replaceable.

MOUNTING: Standard installation is in drywall ceiling via 1/4-20 rods (by others). Optional mounting yokes are available.

FINISH: Housing and components finished in baked white enamel.

CERTIFICATION: Luminaires are cETLus listed conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America. I.B.E.W., BAA compliant, Declare Red List Approved.

Mounting

  • Recessed

Distribution

  • Direct

Ratings & Compliance

  • Buy American Act (BAA)
  • Declare
  • Dry
  • Red List Approved
  • RoHS

Lumens

  • 550 Lm
  • 700 Lm
  • 850 Lm

Emergency Options

  • EM Circuit
  • GTD
  • Integral EM Battery

Controls Options

  • Daylight Sensor
  • Occupancy Sensor
  • Wireless Control

Dimming Protocol

  • DALI
  • DMX
  • Lutron

Dimming Range

  • 1%
  • 5%
  • < 1%

Dynamic LED Color

  • BIOS Dynamic
  • RGBW
  • RGBWW
  • Tunable White

Wiring Options

  • DMX Harness
  • Flexible Whip

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6500K

CRI

  • 80 CRI
  • 90 CRI

Color / Finish

  • Anti-Microbial White
  • Custom
  • White

Efficacy

  • 95 lm/w
  • 100 lm/w
  • 108 lm/w

Integrated Brands

  • Acuity nLight
  • Avi-on
  • BubblyNet
  • Casambi
  • Cooper Wavelinx
  • Current NX
  • Encelium
  • Enlightened
  • Legrand
  • Lutron Athena
  • Lutron Vive
  • Philips EasySense

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cETLus

Materials

  • Aluminum
  • Polycarbonate
  • Steel

Static LED Color

  • BIOS Static
  • White

Voltage

  • 120 V
  • 277 V
  • 347 V

Watts

  • 3 w
  • 4 w
  • 5 w
  • 7 w
  • 9 w
  • 10 w
  • 12 w
