NASL-WOA 2x4

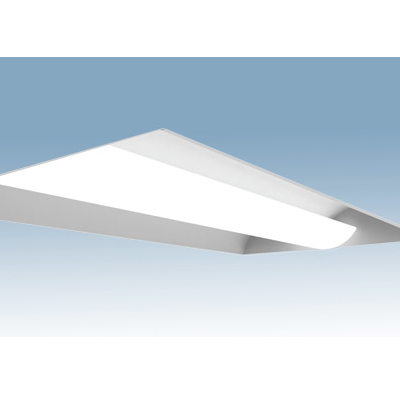

nasl_woa24.pngNASL-WOA 2x4
New Age Series WOA 2x4
The NASL-WOA series of troffers feature a traditional center lensed design for general illumination. May be installed in grid and drywall ceilings, surface mounted or suspended. Available in standard configurations and custom sizes for unique applications. Durable 20 gauge CRS construction is well suited in educational, commercial, and municipal interiors.
Â
Compatible with a range of advanced Smart Lighting technologies, including daylight harvesting, occupancy sensing, and integrated wireless controls. May be specified with static or tunable white CCT, Dim-to-Warm or RGBW color options, and a variety of emergency options.
Resources
CONSTRUCTION: 20 gauge CRS housing and internal components. Â
REFLECTOR: 20 gauge CRS finished in highly reflective baked white enamel with pre-finished reflective LED tray.
OPTICS: LED optimized white opal acrylic snap-in lens.
LED: Static white LED modules in 27/30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW. Tunable White and Dim-to-Warm options available.Â
DRIVER: Driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. Additional dimming protocols available. All drivers prewired from factory for connection to control system (by others). Field replaceable.
MOUNTING: Standard installation is in an exposed inverted T-bar ceiling. Fixtures are supplied with four support brackets for additional support to T-bar. May also be installed in a plaster ceiling (F/TRL mounting option with Flange); field replaceable.
FINISH: Housing and components finished in baked white enamel.Â
CERTIFICATION: cETLus listed, conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America, I.B.E.W, BAA compliant, Declare Red List Approved.
Mounting
- Recessed
- Surface
Distribution
- Direct
Ratings & Compliance
- Buy American Act (BAA)
- Declare
- Made in America
- Red List Approved
Lumens
- 4805 Lm
- 6404 Lm
- 8011 Lm
Emergency Options
- EM Circuit
- GTD
- Integral EM Battery
Controls Options
- Daylight Sensor
- Occupancy Sensor
- Wireless Control
Dimming Protocol
- DALI
- DMX
- Lutron
Dimming Range
- 1%
- 5%
- < 1%
Dynamic LED Color
- BIOS Dynamic
- RGBW
- RGBWW
- Tunable White
Wiring Options
- DMX Harness
- Flexible Whip
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
- 6500K
CRI
- 80 CRI
- 90 CRI
Color / Finish
- Anti-Microbial White
- Custom
- White
Efficacy
- 114 lm/w
Integrated Brands
- Acuity nLight
- Avi-on
- BubblyNet
- Casambi
- Cooper Wavelinx
- Current NX
- Encelium
- Enlightened
- Legrand
- Lutron Athena
- Lutron Vive
- Philips EasySense
Lamp Source
- LED
Listings
- CSA
- UL
- cETLus
Materials
- Acrylic
- Steel
Size
- 2x4 Ft.
Static LED Color
- BIOS Static
- White
Voltage
- 120 V
- 277 V
- 347 V
Watts
- 3 w
- 4 w
- 5 w
- 10 w
- 12 w
- 42 w
- 56 w
- 70 w
