SKLL 2x2

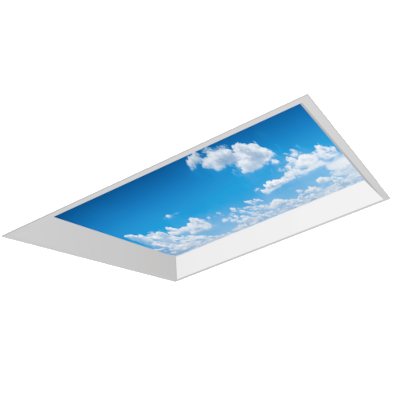

Skylite Troffer 2x2

The SKLL series of troffers feature a deeply regressed lens supported by an extruded aluminum perimeter trim for a true skylight appearance. May be installed in grid and drywall ceilings or surface mounted. Available in sizes up to 4’x4’, the SKLL series is ideally suited for use with decorative Sky Panel graphics to bring the outside inside.

Compatible with various advanced Smart Lighting technologies, including daylight harvesting, occupancy sensing, and integrated wireless controls. May be specified with static or tunable white CCT, Dim-to-Warm or RGBW color options, and a selection of emergency options.
Specification Sheet

Resources

Specsheets


BIM & CAD Files


Share Links
Download
CONSTRUCTION: 20 gauge CRS Steel housing w/extruded aluminum trim.

REFLECTOR: 20 gauge CRS finished in highly reflective baked white enamel with pre-finished reflective LED tray.

OPTICS: LED optimized Satin Ice acrylic lay-in lenses.

LED: Static white LED modules in 27/30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW. Tunable White and Dim-to-Warm options available.

DRIVER: Standard driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. Additional dimming protocols available. All drivers prewired from factory for connection to control system (by others). Field replaceable.

MOUNTING: Standard installation is in an exposed inverted T-bar ceiling. Fixtures are supplied with four support brackets for additional support to T-bar. May also be installed in a plaster ceiling (F/TRL mounting option with Flange).

FINISH: Housing and components finished in baked white enamel.

CERTIFICATION: cETLus listed conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America, I.B.E.W, BAA compliant, Declare Red List Approved.

Mounting

  • Recessed
  • Surface
  • Suspended

Distribution

  • Direct

Ratings & Compliance

  • Buy American Act (BAA)
  • Declare
  • Made in America
  • Red List Approved

Lumens

  • 1620 Lm
  • 2150 Lm
  • 2440 Lm
  • 3258 Lm
  • 4344 Lm
  • 5430 Lm

Emergency Options

  • EM Circuit
  • GTD
  • Integral EM Battery

Controls Options

  • Daylight Sensor
  • Occupancy Sensor
  • Wireless Control

Dimming Protocol

  • DALI
  • DMX
  • Lutron

Dimming Range

  • 1%
  • 5%
  • < 1%

Dynamic LED Color

  • BIOS Dynamic
  • RGBW
  • RGBWW
  • Tunable White

Wiring Options

  • DMX Harness
  • Flexible Whip

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6500K

CRI

  • 80 CRI
  • 90 CRI

Color / Finish

  • Anti-Microbial White
  • Custom
  • White

Efficacy

  • 92 lm/w
  • 100 lm/w

Integrated Brands

  • Acuity nLight
  • Avi-on
  • BubblyNet
  • Casambi
  • Cooper Wavelinx
  • Current NX
  • Encelium
  • Enlightened
  • Legrand
  • Lutron Athena
  • Lutron Vive
  • Philips EasySense

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cETLus

Materials

  • Acrylic
  • Aluminum
  • Steel

Size

  • 1x1 Ft.
  • 2x2 Ft.

Static LED Color

  • BIOS Static
  • White

Voltage

  • 120 V
  • 277 V
  • 347 V

Watts

  • 2 w
  • 3 w
  • 4 w
  • 7 w
  • 10 w
  • 12 w
  • 16 w
  • 21 w
  • 26 w
  • 32 w
  • 42 w
  • 53 w
