PRFL-24-DI-ACS

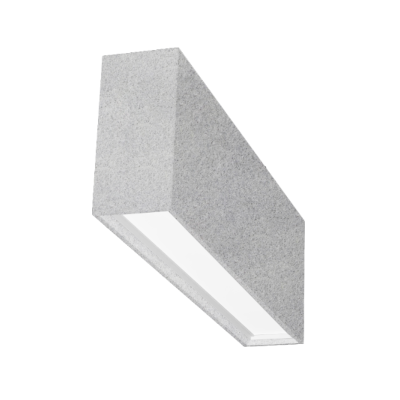

Profile 24 Direct / Indirect Acoustic

Combines noise control and illumination in a simple solution. Promotes an inviting space for personal wellbeing, focus and concentration. Boosts human performance by reducing distracting noise levels and reverberations. Improves privacy during sensitive communication by reducing echoes and reflected sound. 20+ unique colors.

Extruded aluminum housing with welded endcaps. Individual fixtures or continuous rows. LED optimized optics for smooth illumination. Programmable driver for custom lumen packages. 0-10V dimming to 1% standard, dim-to-off available. DMX, Lutron and DALI protocols also available. Sensor Ready for wireless Smart Lighting Solutions.
Specification Sheet

Resources

BIM & CAD Files


Share Links
Download
ACOUSTIC PANELS: 1/2" thick, 100% recyclable polyester material, Class A fire rating, moisture, mold and UV fade resistant.

CONSTRUCTION: Extruded aluminum housing. 20 gauge cold rolled steel internal components.

REFLECTOR: Highly reflective baked white enamel with pre-finished reflective LED tray.

OPTICS: Direct opal acrylic Flush lens is standard. 1" acrylic Drop lens, Steel Cross Baffle with acrylic overlay optional. Indirect Clear acrylic dust covers standard, Flush lens, Satin Ice, Asymmetrical, Batwing, Collimating and Black Out lenses available.

LED: Static white LED modules in 30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW, Advanced Color, Tunable White and Dim-to-Warm options available; field replaceable.

DRIVER: Standard driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. DMX, DALI & Lutron protocols available. All drivers prewired for connection to control system (by others); field replaceable.

MOUNTING: Standard options include adjustable self-locking aircraft cables (AC), and rigid pendant stems (PD). AC assembly is 48" x 1/16" with a 5" feed canopy and 2" suspension canopies. 18 gauge power and 22 gauge dimming control SJT feed. May also be surface ceiling mounted.

FINISH: Housing and components finished in baked white enamel. Canopies and pendant stems are white enamel unless otherwise specified. 5" Feed canopy w/2" Suspension canopies.

CERTIFICATION: cETLus listed conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America. I.B.E.W., BAA compliant, Declare Red List Approved.

Mounting

  • Suspended

Distribution

  • Direct/Indirect

Ratings & Compliance

  • Buy American Act (BAA)
  • Declare
  • Made in America
  • Red List Approved

Lumens

  • 1060 Lm
  • 1415 Lm
  • 1750 Lm

Emergency Options

  • EM Circuit
  • GTD
  • Integral EM Battery

Controls Options

  • Daylight Sensor
  • Occupancy Sensor
  • Wireless Control

Dimming Protocol

  • DALI
  • DMX
  • Lutron

Dimming Range

  • 1%
  • 5%
  • < 1%

Dynamic LED Color

  • BIOS Dynamic
  • RGBW
  • RGBWW
  • Tunable White

Wiring Options

  • DMX Harness

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6500K

CRI

  • 80 CRI
  • 90 CRI

Color / Finish

  • Anti-Microbial White
  • Custom
  • White

Efficacy

  • 100 lm/w
  • 101 lm/w

Integrated Brands

  • Acuity nLight
  • Avi-on
  • BubblyNet
  • Casambi
  • Cooper Wavelinx
  • Current NX
  • Encelium
  • Enlightened
  • Legrand
  • Lutron Athena
  • Lutron Vive
  • Philips EasySense

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cETLus

Materials

  • Acrylic
  • Aluminum
  • Steel

Static LED Color

  • BIOS Static
  • White

Voltage

  • 120 V
  • 277 V
  • 347 V

Watts

  • 3 w
  • 7 w
  • 11 w
  • 14 w
  • 18 w
