PRFL-44W-D-G

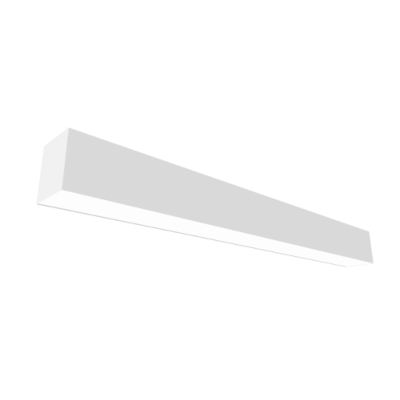

Profile 44 Wall Wash Grid

PRFL-44W is a linear wall washer designed for grid ceiling installation and featuring a drop lens for asymmetric light distribution. Available in individual fixtures to 8’, or continuous rows. Create dramatic wall wash effects in any room or corridor. Also available for installations in drywall ceilings, and as a suspended luminaire. Internal pivoting LED tray allows 5 degrees of aiming to compensate for wall height and/or installed distance from the wall.

Compatible with an assortment of advanced Smart Lighting technologies, including daylight harvesting, occupancy sensing, and integrated wireless controls. May be specified with static or tunable white CCT, Dim-to-Warm or RGBW color options, and various emergency options.
Specification Sheet

Resources

BIM & CAD Files


Share Links
Download
CONSTRUCTION: Extruded aluminum side housing. 20 gauge cold rolled steel top and internal components.

REFLECTOR: Highly reflective baked white enamel with pre-finished reflective LED tray.

OPTICS: Flush opal acrylic lens is standard.

LED: Static white LED modules in 27/30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW, Tunable White and Dim-to-Warm options available; field replaceable.

DRIVER: Standard driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. DMX, DALI & Lutron protocols available. All drivers prewired for connection to control system (by others); field replaceable.

MOUNTING: Standard mounting is in suspended grid ceilings.

FINISH: Housing and components finished in baked white enamel.

CERTIFICATION: cETLus listed conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America. I.B.E.W., BAA compliant, Declare Red List Approved.

Mounting

  • Recessed

Distribution

  • Direct

Ratings & Compliance

  • Buy American Act (BAA)
  • Declare
  • Made in America
  • Red List Approved

Lumens

  • 510 Lm
  • 690 Lm
  • 860 Lm

Emergency Options

  • EM Circuit
  • GTD
  • Integral EM Battery

Controls Options

  • Daylight Sensor
  • Occupancy Sensor
  • Wireless Control

Dimming Protocol

  • DALI
  • DMX
  • Lutron

Dimming Range

  • 1%
  • 5%
  • < 1%

Dynamic LED Color

  • BIOS Dynamic
  • RGBW
  • RGBWW
  • Tunable White

Wiring Options

  • DMX Harness
  • Flexible Whip

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6500K

CRI

  • 80 CRI
  • 90 CRI

Color / Finish

  • Anti-Microbial White
  • Custom
  • White

Efficacy

  • 95 lm/w
  • 100 lm/w
  • 102 lm/w

Integrated Brands

  • Acuity nLight
  • Avi-on
  • BubblyNet
  • Casambi
  • Cooper Wavelinx
  • Current NX
  • Encelium
  • Enlightened
  • Legrand
  • Lutron Athena
  • Lutron Vive
  • Philips EasySense

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cETLus

Materials

  • Acrylic
  • Aluminum
  • Steel

Static LED Color

  • BIOS Static
  • White

Voltage

  • 120 V
  • 277 V
  • 347 V

Watts

  • 3 w
  • 4 w
  • 5 w
  • 7 w
  • 9 w
  • 10 w
  • 12 w
  • 44 w
